The PT100 Probe 800118P offers high accuracy and stability in industrial temperature measurement. Designed to be compatible with the 800118C measuring device, it supports a wide temperature range from -100 to 400°C. A reliable solution for applications requiring precision and durability.
Introduction

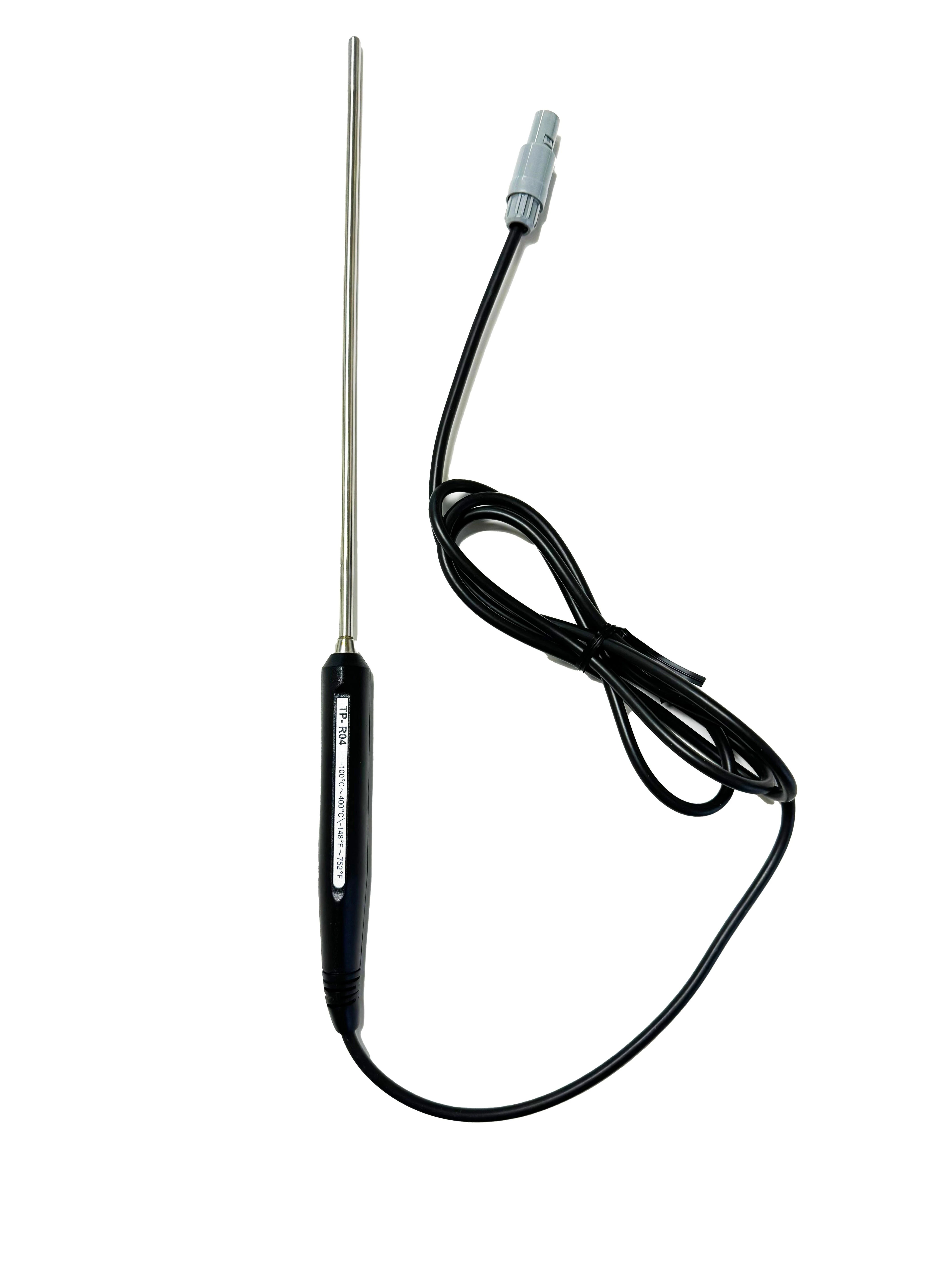

The PT100 Probe 800118P from Sper Scientific is a platinum resistance temperature detector (RTD) sensor designed specifically for industrial measurement applications demanding high accuracy and long-term stability. Manufactured under strict quality standards in Taiwan, it ensures durability and resistance to harsh environments.
The PT100 Probe 800118P perfectly complements the Waterproof RTD Thermometer model 800118C, providing accurate temperature measurement from -100 to 400°C (or -148 to 752°F) with 0.1°C/F resolution, supporting diverse quality control processes and temperature monitoring in industrial production.
Features
- High-quality platinum RTD sensor ensuring stable accuracy and repeatable measurement results.
- Wide measurement range from -100°C to 400°C (-148°F to 752°F), suitable for various applications.
- 0.1°C/F resolution enables detection of small temperature fluctuations, meeting strict quality control requirements.
- High accuracy: ±0.15°C or ±0.59°F, with a ratio error of ±0.002t, guaranteeing reliability in critical measurements.
- Compatible design with the 800118C Waterproof RTD Thermometer, facilitating easy replacement or system upgrades.
- Industrial-grade materials and construction withstand harsh working environments, corrosion, and impact.
Applications
The PT100 Probe 800118P is widely used in industrial and research fields requiring precise temperature measurement, including:
- Process control in chemical, pharmaceutical, food, and beverage industries.
- Temperature monitoring in HVAC systems and industrial refrigeration equipment.
- Temperature measurement in laboratories and product research and development centers.
- Applications in automotive and electronics industries for device testing and calibration.
- Temperature monitoring in boilers, steam systems, and other industrial equipment.
The PT100 Probe delivers accurate and stable measurement data, enabling managers and technicians to make timely decisions that enhance production efficiency and ensure operational safety.
Technical Specifications
| Specification | Value | Note |
|---|---|---|
| Temperature Measurement Range | -100 to 400°C / -148 to 752°F | Suitable for diverse industrial applications |
| Resolution | 0.1°C / 0.1°F | High sensitivity, detects small temperature changes |
| Accuracy | ±0.15°C / ±0.59°F ±0.002t | Ensures high reliability in measurements |
| Sensor Type | Platinum RTD (PT100) | Industrial temperature measurement standard |
| Compatibility | 800118C Waterproof RTD Thermometer | Replacement or synchronized use |
| Origin | Taiwan | Manufactured to international quality standards |
Package Contents
- Industrial-grade platinum RTD temperature probe PT100
- Waterproof and impact-resistant protective housing
- Connector compatible with 800118C Waterproof RTD Thermometer
- Heat-resistant and interference-shielded connection cable
