UV Light Meter UVA/UVB 850032 - Sper Scientific
The UV Light Meter UVA/UVB 850032 provides precise measurement of UVA and UVB intensity with high resolution, supporting industrial and environmental applications. The device features a large LCD screen, data hold function, and memory storage for maximum and minimum values.
Introduction

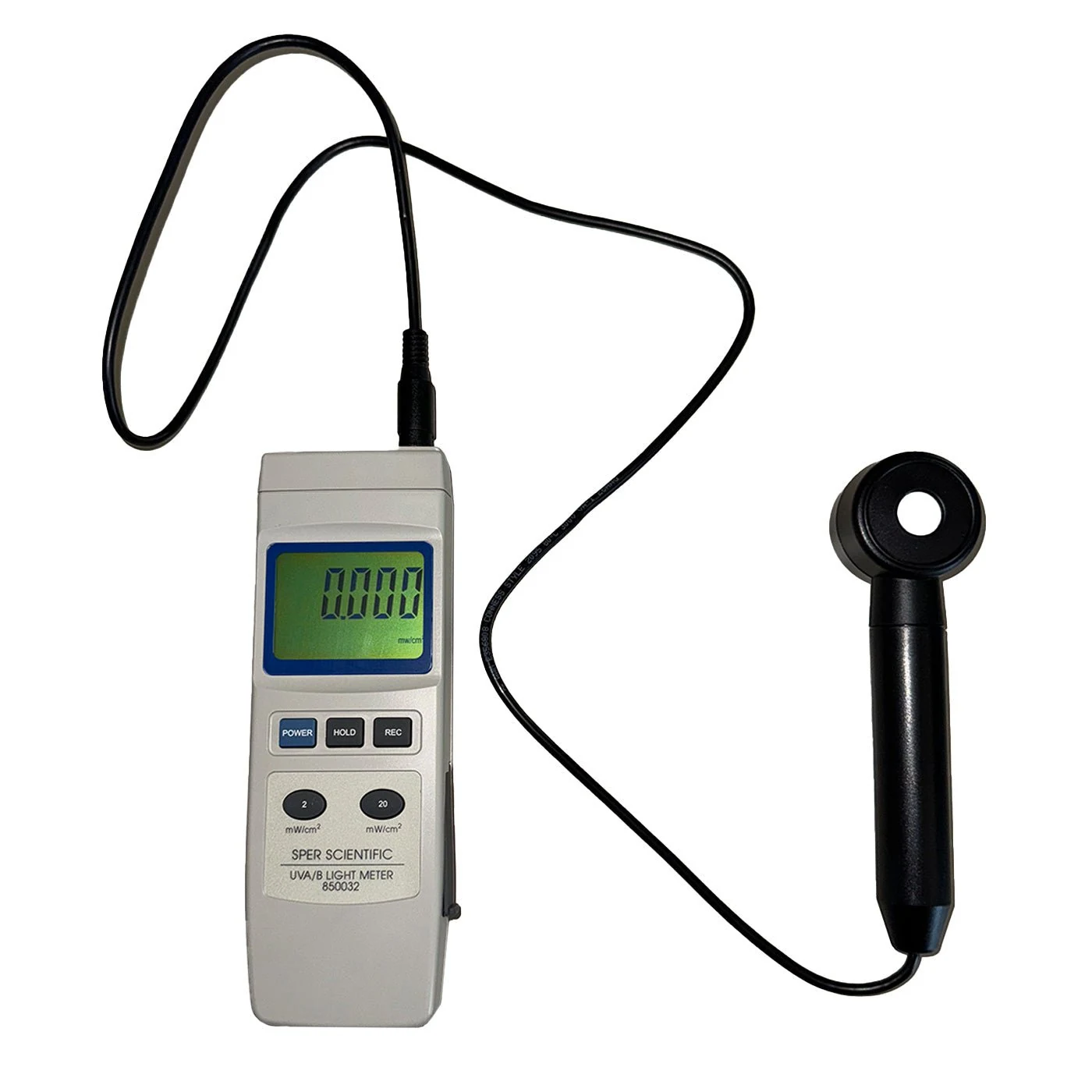

The UV Light Meter UVA/UVB 850032 from Sper Scientific is a specialized instrument designed to deliver accurate and reliable measurements of UVA and UVB radiation intensity. It is an essential tool in industrial, environmental, and medical fields where controlling UV levels is critical for safety and effectiveness.
The device is equipped with a specialized sensor covering a wavelength range from 260 nm to 390 nm, enabling precise measurement of UV intensity within the UVA and UVB spectrum. Its compact, durable design and large LCD screen facilitate easy reading and operation in harsh working environments.
Notably, the UV Light Meter 850032 includes RS232/USB connectivity, allowing data export and integration into advanced industrial data management systems.
Features
- Accurate UVA/UVB measurement range: Wavelength range from 260 nm to 390 nm ensures precise detection of UVA and UVB radiation.
- Two flexible measurement ranges: 2 mW/cm² and 20 mW/cm² ranges allow measurements under various conditions with resolutions of 0.001 mW/cm² and 0.01 mW/cm² respectively.
- High accuracy: ±(4% FS + 2 digits) guarantees reliable readings suitable for stringent industrial and research requirements.

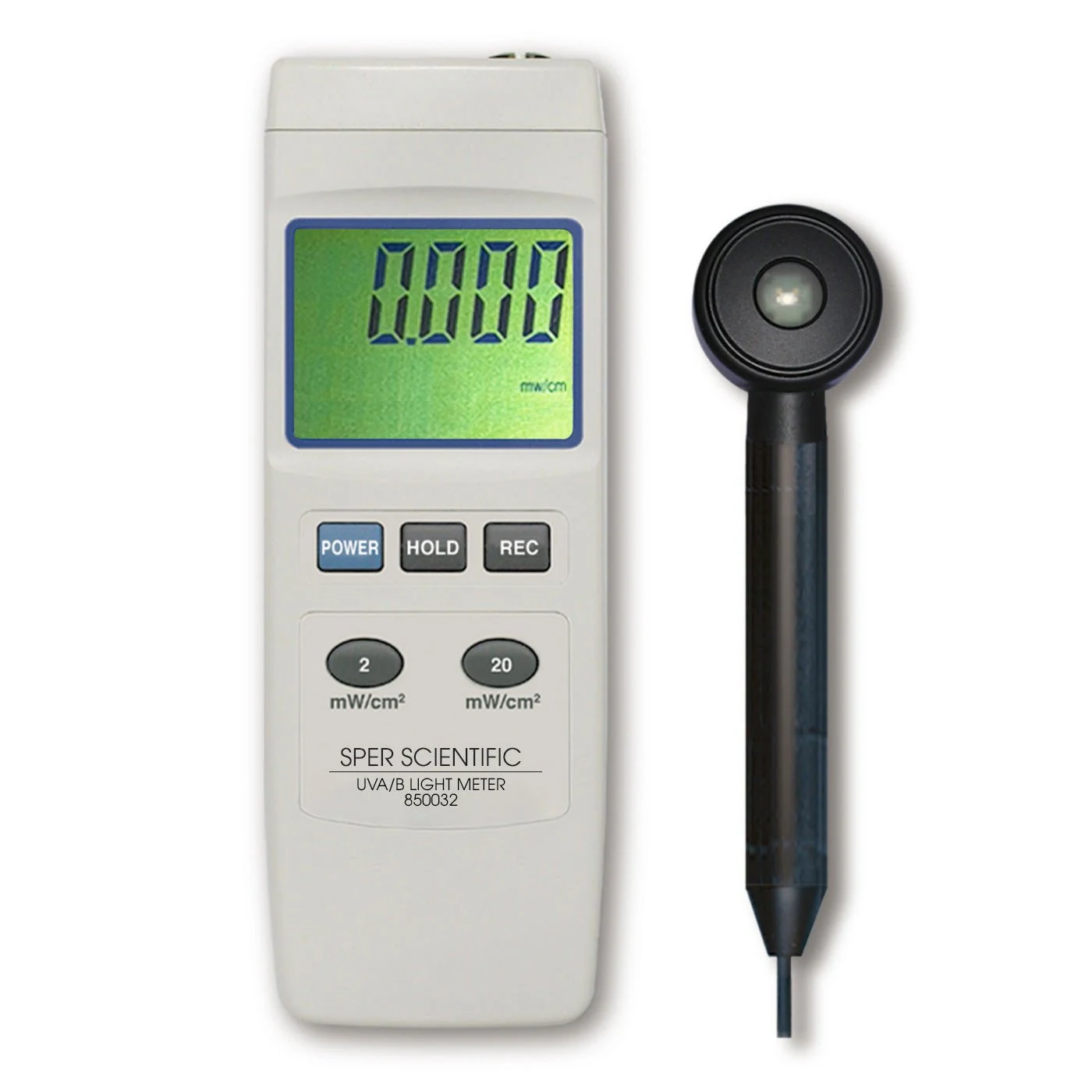

- Large LCD display: 51 mm x 37 mm size clearly presents measurement data with the capability to hold and recall maximum and minimum values.
- Convenient functions: Data hold, manual zero calibration, over-range warning, and auto power-off enhance battery saving and operational efficiency.

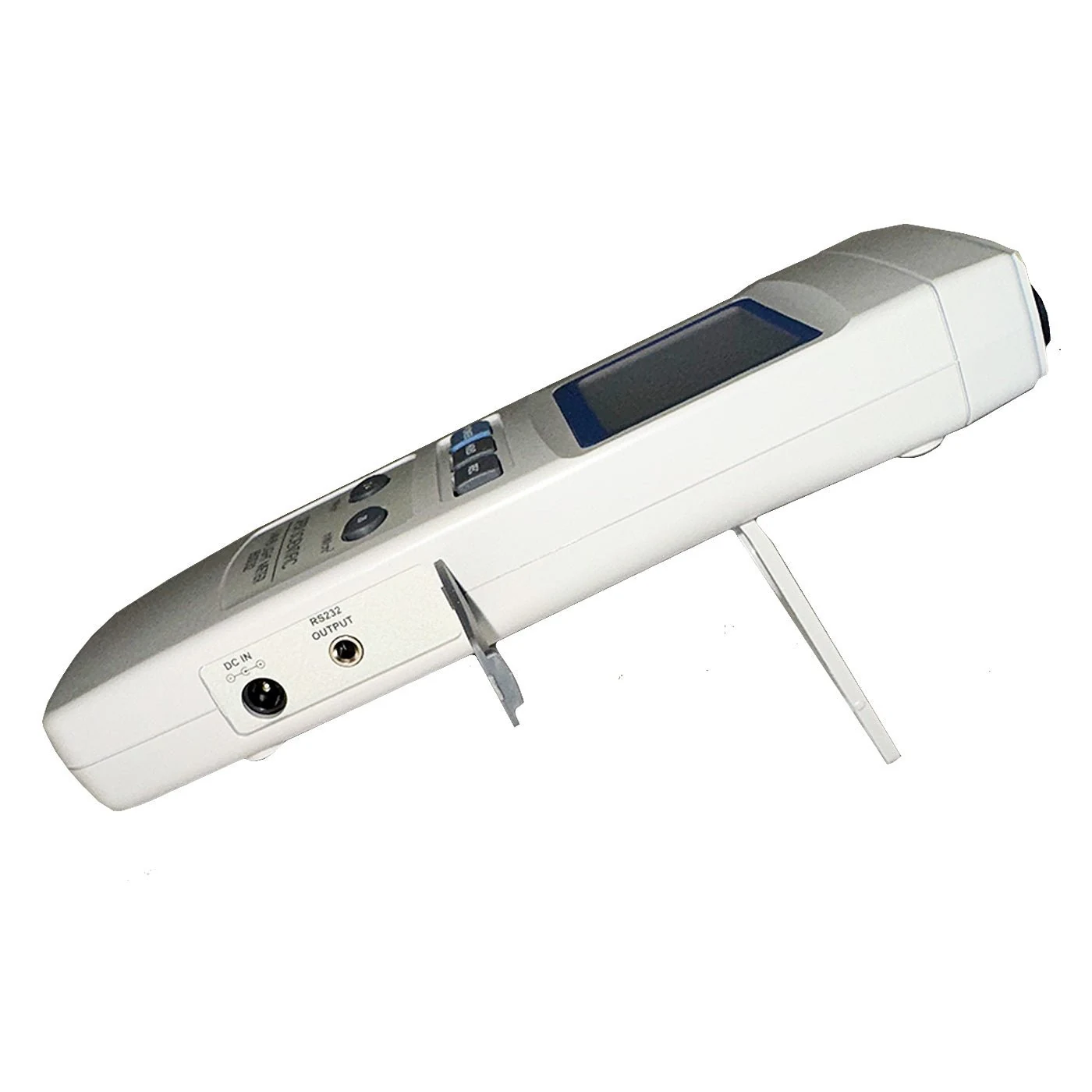

- Data connectivity: RS232/USB ports enable quick data output for easy analysis and storage.
- Robust and compact design: Suitable for harsh environments, easy to carry and use on-site.
Applications
The UV Light Meter UVA/UVB 850032 is widely used in various technical and scientific fields, including:
- Industrial monitoring: Measuring UV intensity in production processes, product quality control, ensuring safety and performance of UV irradiation equipment.
- Environmental research: Monitoring UV radiation levels in climate change studies, analyzing UV impact on ecosystems and human health.
- Healthcare: Evaluating and testing UV intensity in sterilization devices and cleanrooms to optimize disinfection efficiency and user safety.
- Education and training: Used in laboratories and universities for practical training and research on UV radiation and its applications.
With superior technical features, the UV Light Meter UVA/UVB 850032 is the top choice for professionals and researchers requiring accurate, reliable, and user-friendly UV measurement equipment.
Technical Specifications
| Model | 850032 |
| Brand | Sper Scientific, USA |
| Origin | Taiwan |
| Wavelength range | 260 nm to 390 nm |
| Measurement range | 2 mW/cm² and 20 mW/cm² |
| Resolution | 0.001 mW/cm² (2 mW/cm² range), 0.01 mW/cm² (20 mW/cm² range) |
| Accuracy | ± (4% FS + 2 digits) |
| Display | LCD 51 x 37 mm, max 1999 counts |
| Sampling time | Approximately 1 second |
| Power supply | 9V DC battery or 9V DC adapter (optional) |
| Data interface | RS232/USB |
| Operating temperature | 0 to 50 °C |
| Operating humidity | Below 85% RH |
| Dimensions | Main unit: 200 x 68 x 30 mm; Sensor head: 45 mm diameter x 32 mm; Sensor handle: 125 x 24 mm diameter |
| Weight | To be updated |

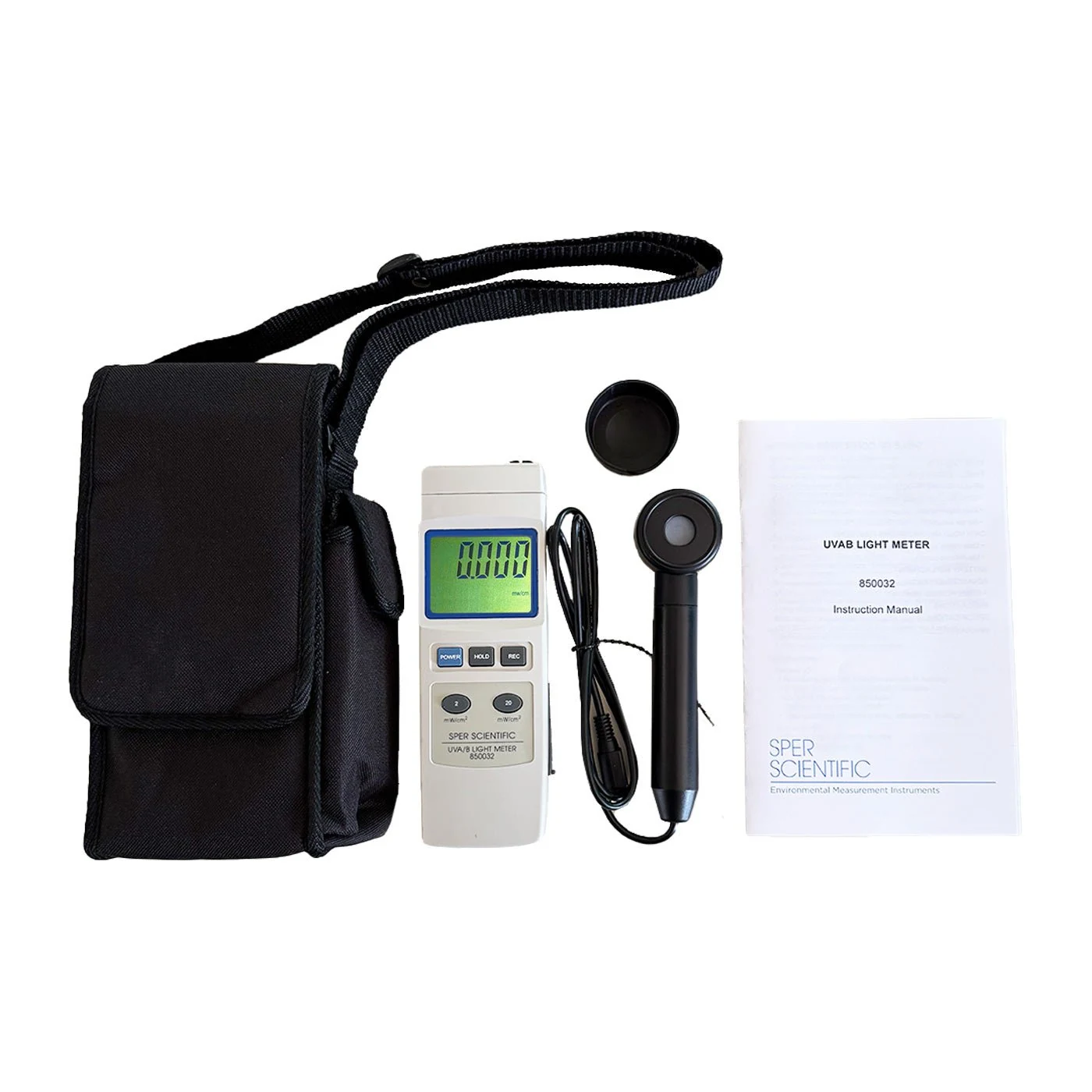

Package Contents
- User manual: 1 unit
- UV sensor head: 1 unit
- 9V DC battery (type 006P, MN1604 or equivalent)
- Optional accessories (not included): RS232 cable (UPCB-02), USB cable (USB-01), data acquisition software (SW-U801-WIN), AC-DC 9V adapter, soft carrying case (CA-05A), hard carrying case (CA-06)
